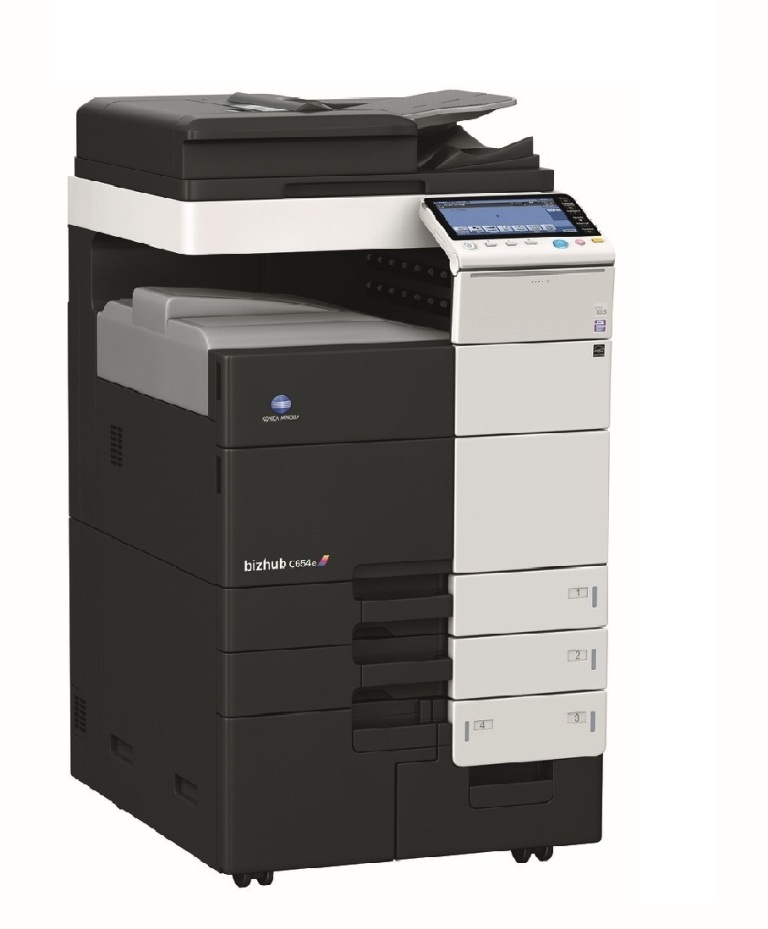

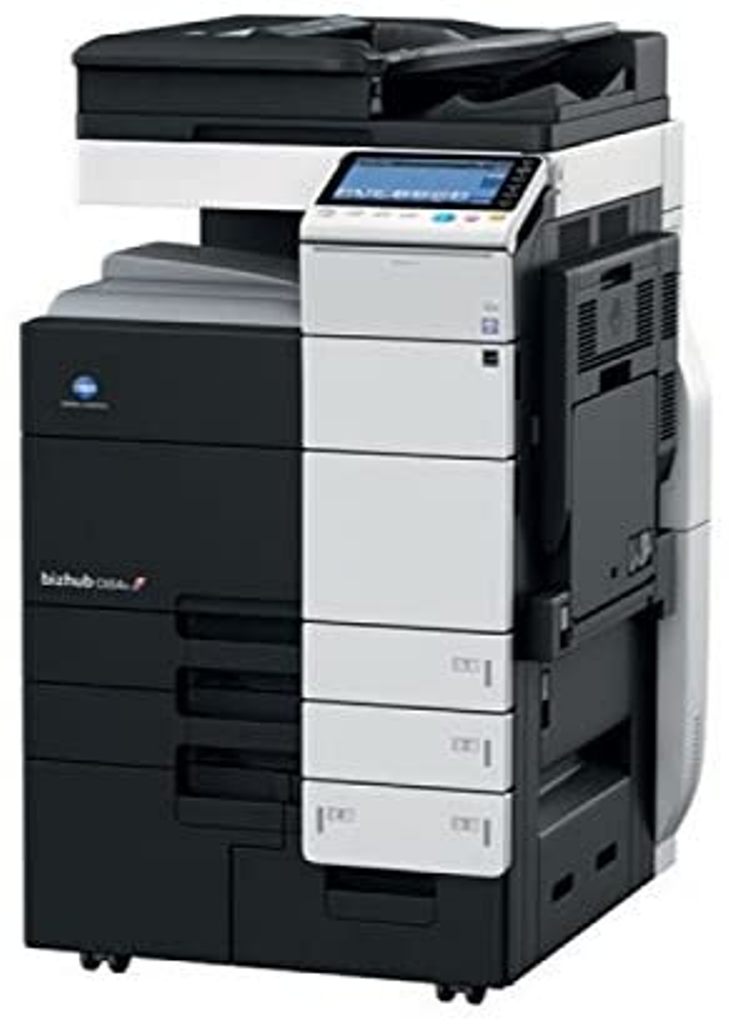

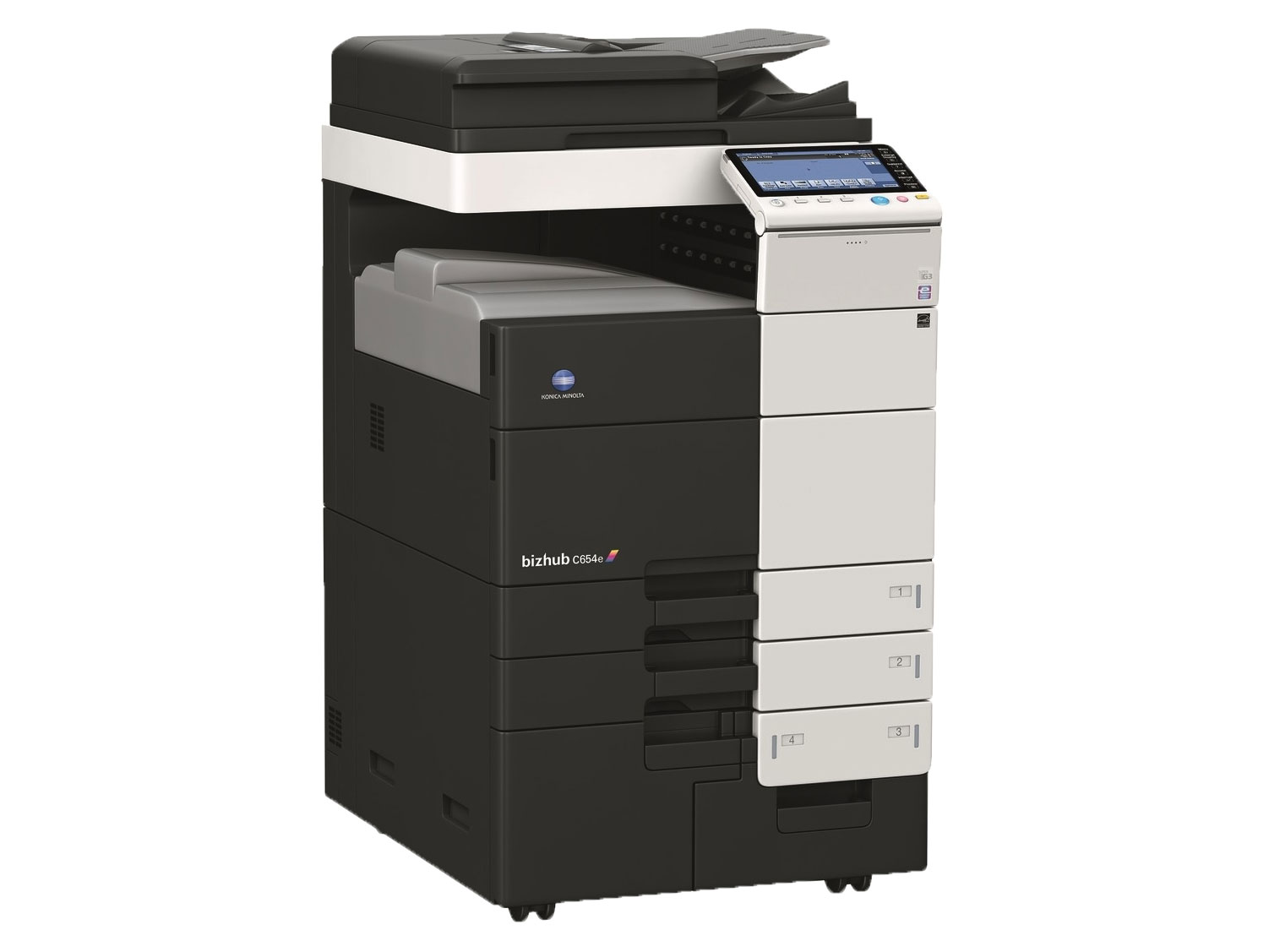

Konica Minolta Bizhub C654e A3 Multifunctional Direct Image (DI) Laser Printer

In Stock

800,000.00

Copier Specifications

Copying process Electrostatic laser copy; Tandem; indirect
Toner system Simitri HD® polymerised toner
Copy/print speed A4 mono (cpm) 65
Copy/print speed A4 colour (cpm) 60
Copy/print speed A3 mono (cpm) 33
Copy/print speed A3 colour (cpm) 30
Autoduplex speed A4 mono (cpm) 65
Autoduplex speed A4 colour (cpm) 60
1st Copy/print time mono (sec) 3.7
1st Copy/print time colour (sec) 5.3
Warm-up time (sec) Approx. 22 (Warm up time may vary depending on the operating environment and usage)
Copy resolution (dpi) 600 x 600
Gradations 256 gradations
Original format A5-A3
Magnification 25-400% in 0.1% steps; Autozooming
Copy functions Chapter; Cover and page insertion; Proof copy (print and screen); Adjustment test print; Digital art functions; Job setting memory; Poster Mode; Image repeat; Overlay; Stamping; Copy Protection
Quantity
Compare
General Specifications
bizhub C554 bizhub C454 bizhub C364 bizhub C284 bizhub C224
Type Desktop Full-colour Printer / Copier / Scanner
Colour Support Full-Colour
Resolution Scan Main: 600dpi × Sub: 600dpi
Print Copy: Main; 600 dpi × Sub; 600 dpi / Print: Main; 1,200 dpi × Sub; 1,200 dpi
Memory Capacity Std. 2 GB
Max. 4 GB
HDD 250 GB
Gradation 256
Original Type Sheets, Books, Objects
Max. Original Size A3 (11″ × 17″)
Output Size SRA3 to A5, B6 Lengthwise, A6 Lengthwise Thick paper, Foolscap* (8-1/2″ × 13-1/2″, 200 mm × 330 mm, 8-1/8″ × 13-1/4″, 8-1/2″ × 13″, 8-1/4″ × 13″, 8″ × 13″), 8K, 16K, Long Length Paper (210 × 457.3 mm to 297 × 1,200mm) * Set by Customer engineer
Image Loss Max. 4.2 mm or less for top edge (5 mm for thin paper), Max. 3.0 mm or less for bottom edge, Max. 3.0 mm or less for right/left edges * A loss of 4.2 mm each during printing.
Warm-Up Time
*Warm-up time may vary depending on the operating environment and usage.
*The time required to start printing when both the main power and sub-power switches are turned from OFF to ON. (23°C, std. voltage)
Colour: 22 sec. or less (JPN/TAIWAN:25 sec. or less) Colour: 25 sec. or less Colour: 20 sec. or less
B/W: 22 sec. or less(JPN/TAIWAN:23 sec. or less) B/W: 25 sec. or less B/W: 20 sec. or less
*The time required to start printing when the main power switch is ON and the sub-power switch is turned from OFF to ON. (23°C, std. voltage) Colour: 22 sec. or less (JPN/TAIWAN: 25 sec. or less) Colour: 25 sec. or less Colour: 20 sec. or less Colour: 18 sec. or less
B/W: 22 sec.or less(JPN/TAIWAN:23 sec. or less) B/W: 25 sec.or less B/W: 20 sec.or less B/W: 18 sec.or less
First Copy Out Time
*A4/Letter crosswise, full size, using the first tray, scanning from the original glass surface.
Colour: 4.6 sec. or less Colour: 5.5 sec. or less Colour: 6.9 sec.or less Colour: 7.7 sec .or less Colour: 8.3 sec.or less
B/W: 4.1 sec. or less B/W: 4.6 sec. or less B/W: 5.3 sec.or less B/W: 5.9 sec. or less B/W: 6.9 sec.or less
Copy Speed (A4/Letter Crosswise) Colour/B&W: 55 ppm Colour/B&W: 45 ppm Colour/B&W: 36 ppm Colour/B&W: 28 ppm Colour/B&W: 22 ppm
Copy Magnification Fixed Same Magnification 1:1± 0.5% or less
Scaling Up 1: 1.154/1.224/1.414/2.000
Scaling Down 1: 0.866/0.816/0.707/0.500
Preset 3 types
Zoom 25 to 400% (in 0.1% increments)
Lengthwise Crosswise Individual Settings 25 to 400% (in 0.1% increments)
Paper Capacity(80g/m2paper) Tray 1 500 sheets (up to A3)
Tray 2 500 sheets (up to SRA3)
Multiple Bypass Tray 150 sheets (up to SRA3)
Max. Paper Capacity (80g/m2) 6,650 sheets 3,650 sheets
Paper Weight Tray 1 / 2 52 to 256 g/m2
Multiple Bypass Tray 60 to 300 g/m2
Multiple Copy 1 to 9,999 sheets
Auto Duplex Type Non-Stack
Paper Size Width: 100 to 320 mm, Length: 148 to 457.2 mm
Paper Weight 52 to 256 g/m2
Power Requirements AC220 to 240 V 9 A (50 to 60 Hz) AC220 to 240 V 8 A (50 to 60 Hz)
Max. Power Consumption 2.0 kW or less 1.58 kW or less
Dimensions [W] × [D] × [H] 615 × 685 × 921 mm (24-1/4″ × 27-1/2″ × 36-1/4″) 615 × 685 × 779 mm (24-1/4″ × 27-1/2″ × 30-3/4″)
Weight Approx. 101 kg (222-3/4 lb) Approx. 85 kg (187-1/2 lb)
Space Requirements*1 [W] × [D] 937 × 1,246 mm (37″ × 49″) 937 × 1,214 mm (37″ × 47-3/4″)
*1 Without options, with paper trays pulled out, and multiple bypass tray, auxiliary tray
Print Specifications (Standard)
Type Embedded
CPU C554/C454:MPC8536 1.2GHz  C364/C284:MPC8536 1.0GHz  C224:MPC8536 800MHz
Memory Shared with the copier
HDD 250 GB (Shared witd tde copier)
Print Speed Same as Copy Speed (when using the same original)
Print Resolution 1,200 × 1,200 dpi
PDL PCL5e/c, PCL6 (Ver. 3.0), XPS Ver. 1.0
Protocol TCP/IP, IPX/SPX (NDS support), SMB (NetBEUI), LPD, IPP1.1, SNMP, HTTP
Support OS Windows 2000 / XP / XP 64bit / Vista / Vista 64bit / 7 / 7 64bit / Server 2003 / Server 2003 64bit / Server 2003 R2 / Server 2003 R2 64bit /Server 2008 / Server 2008 64bit /Mac OS 9.2 / Mac OS X 10.2/10.3/10.4 (Power PC) / Mac OS X 10.5(Power PC/Intel) / Mac OS X 10.6/10.7(Intel)Linux
Fonts PCL 80 Roman fonts
PS 137 Roman Type1 fonts
Interface Ethernet (10BASE-T/100BASE-TX/1000BASE-T), USB 1.1, USB 2.0, USB Host
