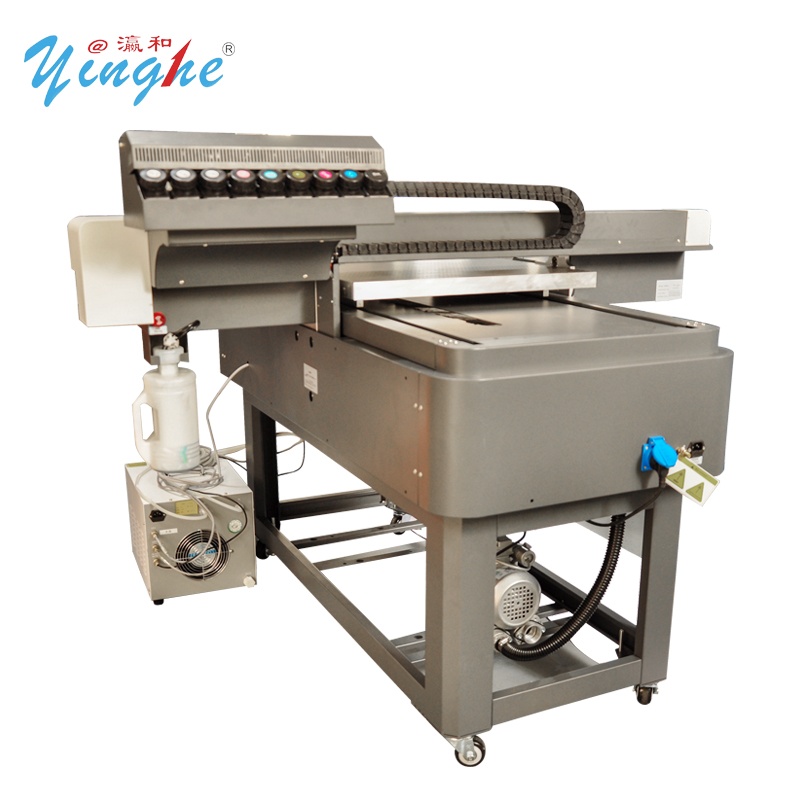

Heavy Duty UV Flatbed Printing Machine

In Stock


This machine is Suitable for printing on all flat materials, such as phone cover, ceramic tile, glass, metal, leather, crystal, wood, ABS, acrylic, PVC, etc. The printing theory is digital inkjet printing, directly print on objects without plate-making, easy and simple. Inkjet printing is widely used in many fields
1.adopts UV lamp, ink dries instantly, you can touch the printing surface at once
2.adopts water cooling system
3.with white ink, the output has embossment effect
4.high speed with high resolution 720*1440 dpi,and the max printing height reaches 12 cm
5.non-plate printing,no need pre-coating,save more time and cost
6.the output image is water proof,uv proof, scratch proof. The image can keep more than two years.
7.simple design and producing process, can be performed by one person, instantly obtain the


Printhead                     2 pieces TX800 printheads , It’s Micropiezo electricity digital printing technology.
Microwave printhead Epson               TX800 printhead
Max printing dimension                      130*125cm
Print platform                                      Stainless steel platform
Y-axis movement                                Servo motor precise positioning
Print Direction                                    Uni-direction or Bi-Direction
Max printing thickness                        12cm
printer demension                               150*140*65cm
Packing Dimension                             1720*1680*1350mm
Ink system                                           Negative pressure continuous ink supply system
Ink Capacity                                       1000ml of each bottle
Printing technology                 Piezo-electric photo album machine with single DX5/TX800 generation printing head
Image Format                          BMP,TIFF,JPG,EPS,PDF,CAD
Resolution Max:                      720*1440dpi
Printing speed                                     3~5sqm/h 4 pass
Software                                 Maintop 5.3(Free),Photo print/Ultraprint(Charge 300USD)
Ink dry                                    LED Light solidified
UV ink 7 Colors:                     C/M/Y/K/LC/LM+W
Power                                      110V/220v, 50-60HZ
working power                        450w
Gross power                            1800W
UV LED LAMP lifespan       as long as 50,000 hours
Gross weight                           380KG
Packing                                   Fumigation-Free Wooden Case
Warranty                                 1 year warranty except consumable accessories, lifelong maintenance
Applicable material                 Plastic, glass, wood, ceramic, metal, crystal etc
Normal Features of uv printer:
1. can print on any flat material directly.
2. Finished product of the UV flatbed printer is Water proof, UV proof, and Scratch proof.
3. Wide range of materials: Metal, Wood, Glass, Acrylic, PVC, PU, PP, ABS, Ceramic,Plastic Covers etc.
5. Finished product is suitable for outdoor use.
6. The printing machine can print white color
Technical support (after sale service)

1. 3-7 days one by one technical training in our company:
During training, our technician will explain and demonstrate you all details about the machine, such as print principle, ink filling notice,
operation process, daily maintenance, different printing solution and so on. After that you will be requested to operate the machine on site
until we make sure that you master all details clearly.
2. English manual & Operation CD : Including all training content, troubleshooting and so on.
3. Warranty: 1 year warranty, lifetime maintenance.
4. Professional English Spoken Engineer On-line support & Remote assistance
