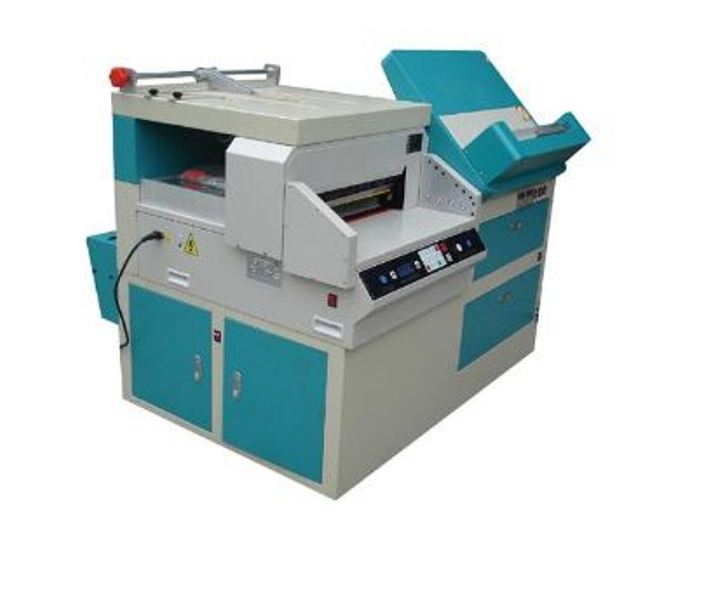

10-in-1-Album-Making-Machine

In Stock

2,950,100.00 2,495,050.00

The 10-in-1 machine has eleven functions : creasing ,binding , heat & cold pressing, CNC cutting, corner cutter ,cover making ,edge holding ,cover cutting, grooving and heat binding.
1.Delicate design for exporting .Multi-dimensional platform can be worked at the same time with high efficiency .Combine electric with pneumatic ,easy operation and make sure the albums without deformation ,tackless and crack
2.Cover making with Trilateral ruler measurement and accurate position 3.The creation of the cover cutter,can help the customers to cut the angle accurately 4.Aluminium alloy knife,can be creased with delicate marks and not easy to be broke 5.Grooving ,about temperature ,pressure ,grooving location can be adjusted according to the customers
6.Digital temperature control instrument , simple operation and constand temperature automatically ,low cost and maintainance is accepted:

Quantity
Compare

Technical Parameters

Machine size                                      1180*980*1500mm

Creasing blade materials               45#

creasing balde width                      2.1mm/1.7mm(ajustable)

Max. size of creasing                      480mm

corner cutting                                    R3~R10

Pressing way                                      cold  and hot

Air compressor model                   U-1509

pump effiency                                  45L/min.

pressing size                                      550*390mm

pressing height                                 200mm

pressing temperature                    60~80℃

paper cutting mode                        460 cnc

cutting size                                         460*460mm

cutting height                                    50mm

pretection                                           Infared protection

paper pressing mode                     Independent motor paper pressing

working pressure                             0.7Mpa

max. cover making size                 18”*24”

max. binding size                             480mm

binding material                               aluminum

max.binding height                         45mm

power requirement                        220V/50HZ

the way of packing                          the wooden box

Edition gold material                       A3  plate heat collapse paint

Machine weight                                   280KG

Gross weight                                     340kg
