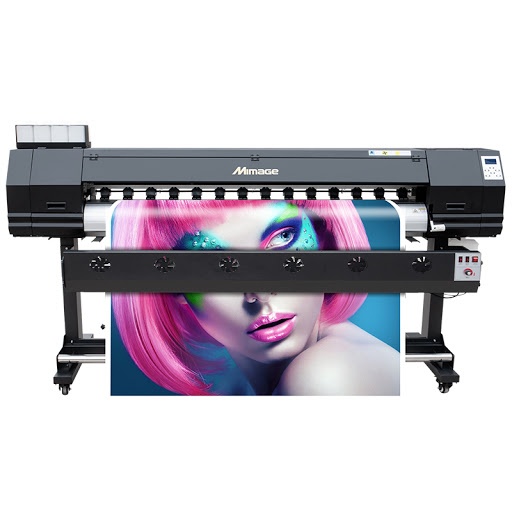

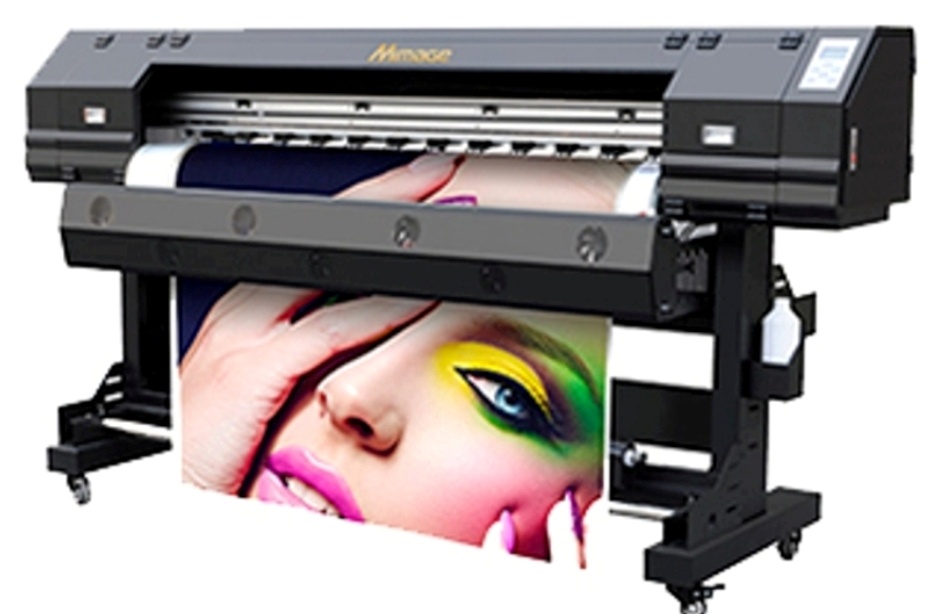

6feet 1.8m Mimage DX11/XP600 Large Format Flex Banner & Sublimation Printer

In Stock


Mimage M18S series large format printer is our Hotsale model with high quality and high resolution Coupled with outstanding printing output.

Available head:  XP600

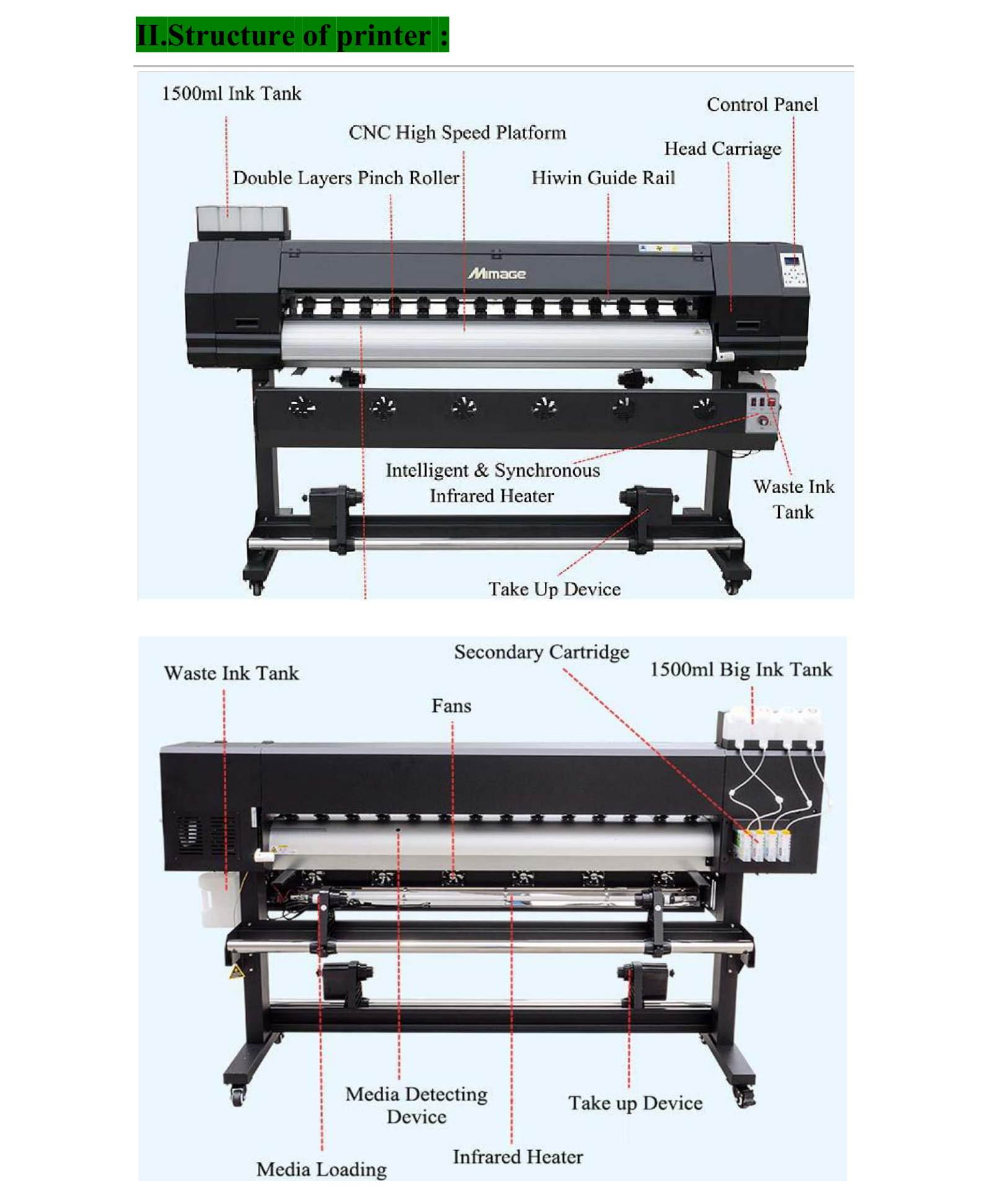

Main Features:

  • Printer platform is true 3 phase, 99% of the market models don’t have middle phase heating, which is crucial for colors and resolution as middle heating has high requirements for the metal.
  • Front infrared heating system, and temperature adjustable
  • Higher speed platform originates from classic Locor Easyjet model
  • Strike and seal type cap station for single head, and lift up type cap station for double heads, very easy for maintenance.
  • Material detect system, once material run out, printer will stop printing automatically
  • LED light for better effect checking when printing
  • Secondary ink stank for stable ink supply for fast printing.
  • Heavy duty and durable printer body.
  • Auto and double power motor feeding and Take-up roll to roll system.
  • Free Rip software Maintop 5.3

Specification of Printer


Model M16S/M18S
DX5*2 XP600(Dx11)*2 Dx7*2 4720(3200)*2
4PASS 35m2 4PASS 35m2 4PASS 30m2 4PASS 42m2
6PASS 26m2 6PASS 26m2 6PASS 20m2 6PASS 34m2
Printing Speed
DX5*1 XP600(DX11)*1 DX7*1 4720(3200)*1
4PASS 18m2 4PASS 18m2 4PASS 16m2 4PASS 21m2
6PASS 15m2 6PASS 15m2 6PASS 12m2 6PASS 15m2
Material Width Max 1850mm(M16S:1630mm)
Print Width 1830mm(M16S:1600mm)
RIP Software Maintop, Photoprint (Optional)
Eco-solvent ink for outdoor advertising printing
Water-based ink, for indoor advertising printing
Printing Ink
Sublimation ink for fabric printing and transferring with heat press machine
(one printer only can
choose one type ink)
UV ink, for high quality products printing
Color 4 colors(K, C, M, Y),1500ML each color
Ink Supply System Auto Cleaning Capping System, negative ink supply system
Canvas, Flex banner, poster, ceiling film, SAV, vinyl, clear sticker, one
Media Type way vision, mesh, Photo paper, light box cloth, leather, reflective material ,3D
wallpaper, curtains fabric, paper, Label, etc.
Printhead Height 1.5-8mm Above Media Adjustable, usually 2-3mm
Heating System Infrared dryer & Fan Drying System
Auto Media System Equipped(Max Media Weight 60kg)
Capping&Moisturizing Auto Capping System& Moisturizing System
Clamp Combined Anti-warping Clamps
Material Detection have
Take Up System Heavy Type Auto Take-up System
Power Machine power: 1500W; External heating: 1200W, 220v/110v
Computer System Win/7/Win10/Win xp
Platform Heater Pre-Mid-Post 3 phase heater, can control separately. temperature
Working environment Temperature: 18-35℃, Humidity: 35%-65%
Machine Dimension 2720*880*1680 2720*880*1680 2980*880*1680 2980*880*1680
Package Dimension 2745*760*665 2745*760*665 3080*840*760 3080*840*760
N.W/G.W 240KGS/280KGS 240KGS/280KGS 250KGS/290KGS 250KGS/290KGS
