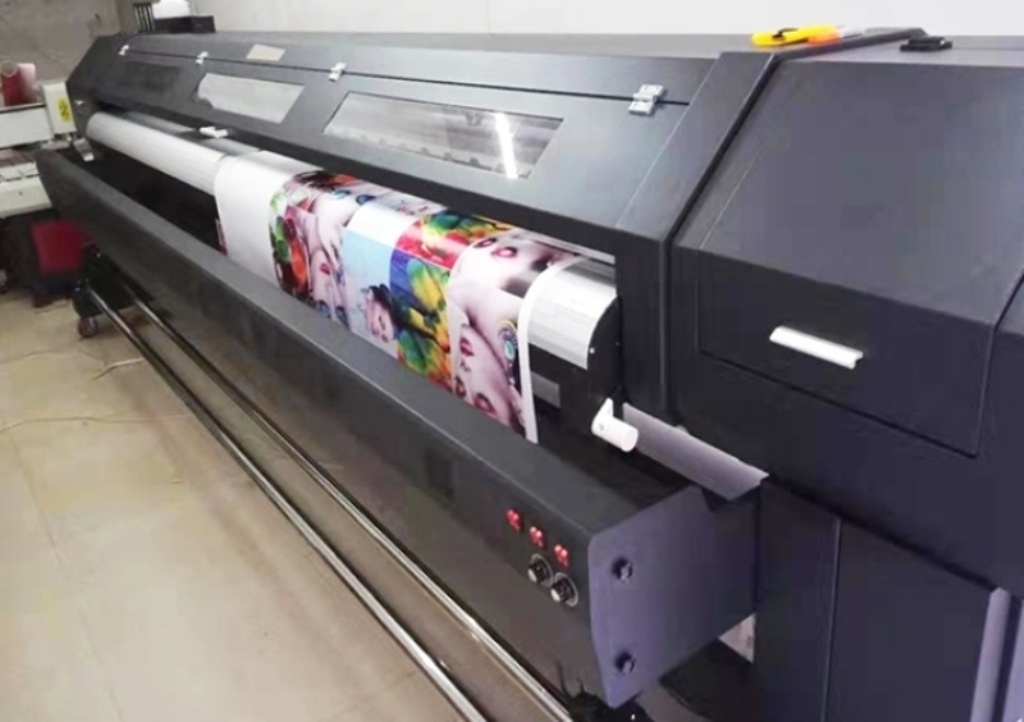

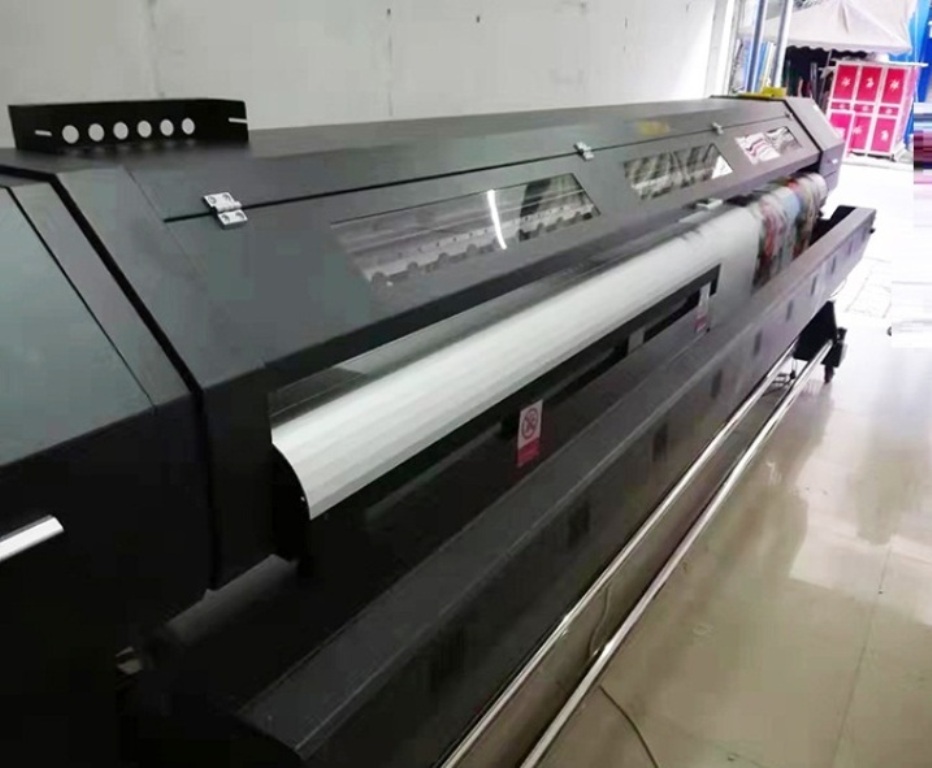

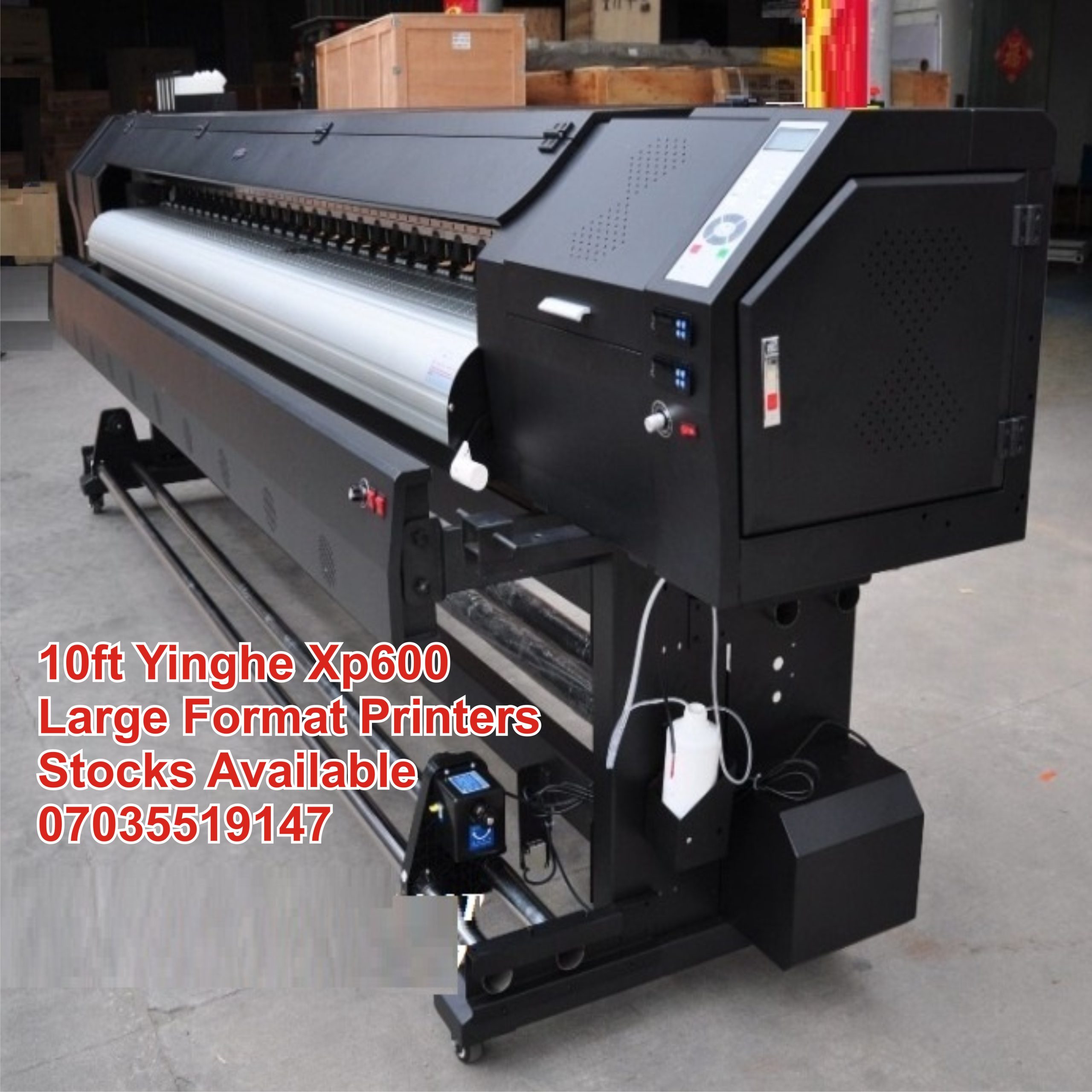

Yinghe 10ft/3.2m High Speed printing machine/industrial digital large format Eco Solvent printer/High quality XP600 printer

In Stock


Main Features:

  • Printer platform is true 3 phase, 99% of the market models don’t have middle phase heating, which is crucial for colors and resolution as middle heating has high requirements for the metal.
  • Front infrared heating system, and temperature adjustable
  • Higher speed platform originates from classic Locor Easyjet model
  • Strike and seal type cap station for single head, and lift up type cap station for double heads, very easy for maintenance.
  • Material detect system, once material run out, printer will stop printing automatically
  • LED light for better effect checking when printing
  • Secondary ink stank for stable ink supply for fast printing.
  • Heavy duty and durable printer body.
  • Auto and double power motor feeding and Take-up roll to roll system.
  • Free Rip software Maintop 5.3
Model YH-3200G
Print head DX5/DX7/XP600
Ink cartridge volume 2.5L  4 Colors:2.5L*4/color;
sort Water based ink/Eco solvent ink
ink supply system Ciss ink supply system
Feeding Width 3250mm
printing size 3200mm
Cleaning of printhead Automatic
printing thickness height of printhead from 1.5mm to 8mm adjustable
Media Heater Pre/Printing/Post heater
Media Inside:PP sythentic paper,vinyl sheet,film,gloss photo paper,coated paper,canvas,parchment paper

Outdoor:Sticky,vinyl,light-cloth,leather,canvas,wallpaper,outdoor coated paper,outdoor vinyl sheet,outdoor PP

Media cutting auto/manual cut
text 4pss 51m2/H
picture 6pss 33m2/H
photo 8pss 25m2/H
RIP software Maintop V5.3 5.5, Photoprint, Topaz, Seeget Wasatch
USB Transfer interface USB2.0 High-speed
Operation environment Temperature: 15 celsius-25 celsius, Humidity: 35%RH-65%RH
Power supply
AC 110V (10% more or less)  50/60Hz;  AC 220V (10% more or less)  50/60Hz
printing 500W,front heating and back heating 800W,dryer 4800W
Machine Dimension
L 4800 x W 900 x H 1700mm
Net Weight
Package size(mm) L 4960 x W 1000 x H 900mm
Gross Weight 600KG
YINGHE 10ft/3.2m High Speed printing machine/industrial digital large format printer/High quality DX5/DX7/XP600 printer
