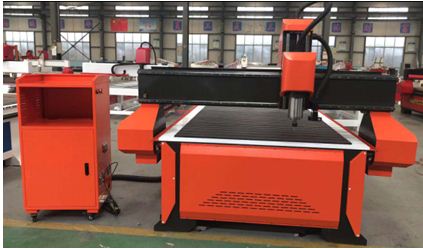

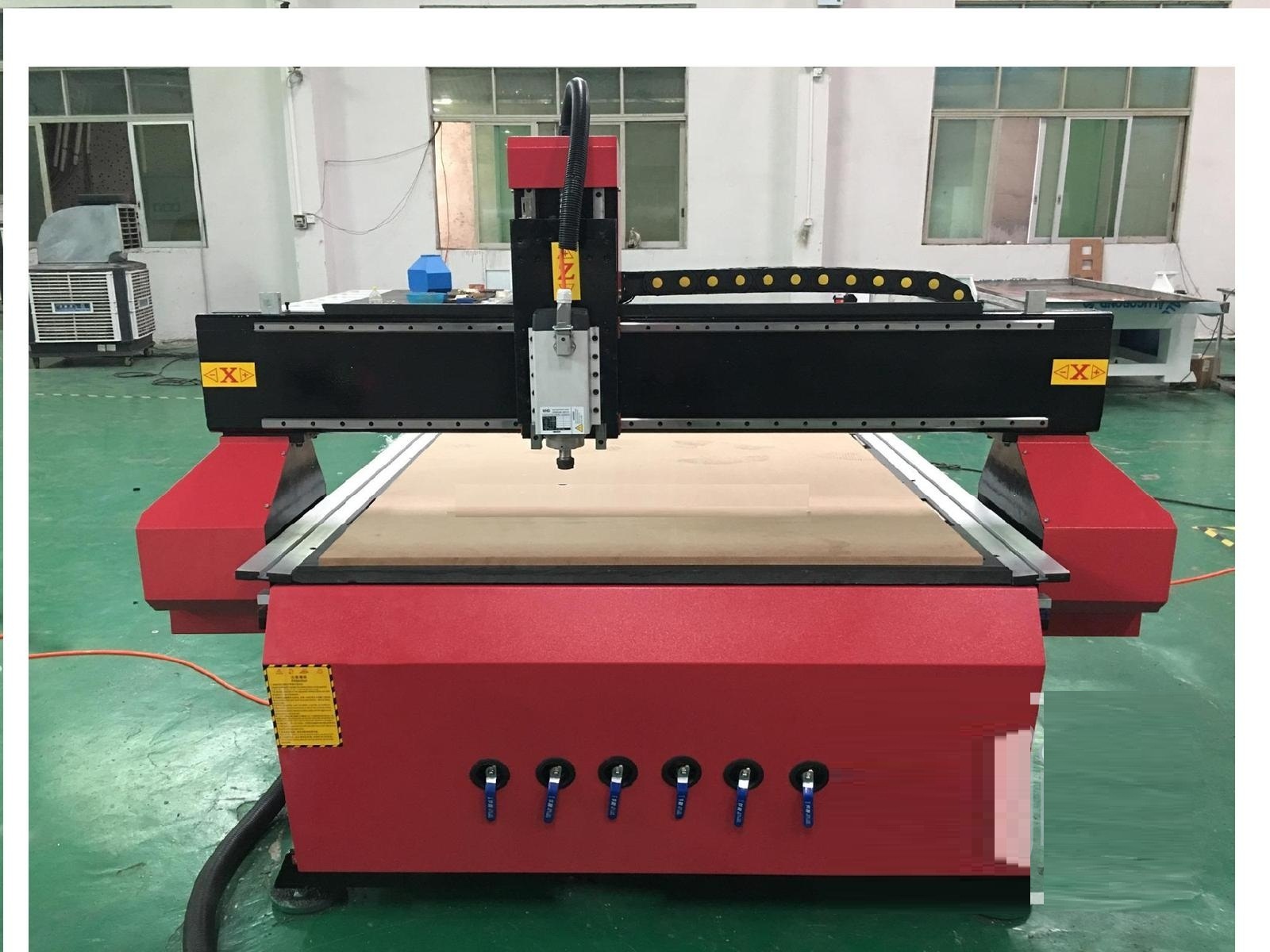

Wood Cnc Router Engraving Machine With 4.5kw Spindle

In Stock



1.The heavy steel-base frame with tempering stress removal can ensure extremely rigid cutting platform and the durable solid-body unchanged in 10 years .
2. Adopting AMT linear guides of TAIWAN , provide a precise linear motion with minimal friction,ensure smooth and sturdy play-free motion, higher accuracy , so improving stability of working.
3. Spindle Refrigerator,can extend the life of the cutter and spindle motor.
4. Transmit by rack gear,assure high speed and productive.
5. Drivering by step motors can make sure precision and lower noise .
6. Aluminum T-slot table top for mechanical clamps,suitable for different size of sheet.
7. Flexible gantry can saves valuable floor space,offer incredible throughput and productivity.
8. Compatible with many different software like Type3,Artcam,Mastercam,UG, wentai, etc.
9. PC-Based Controller,provide User-friendly operator interface.

Technical Specifications
Model YH-1325
X Y Working area 1300x2500x300mm
Spindle motor 4.5kw Inverter-driven spindles motor cooled by water
Max. Consume power 8.0KW
Working mode Stepper motor
Control system DSP Control
X, Y,Z Transmission X,Y axis Gear Wheel Transmission,Z axis Ball Screw
Lathe Structure Cast wholly by iron,srong and never out of shape
X,Y,Z Traveling Positioning Accuracy ± 0.03/300mm
Repositioning accuracy ± 0.05mm
Max. Motion Speed 0-45000mm/min
Max. Working Speed 0-25000mm/min
Rotating speed of spindle 2,4000rpm
Dictate format G Code, *uoo, *mmg, *plt,*nc
Operating voltage AC220V/AC380V,  50/60Hz
Running circumstance Temperature: 0℃~45℃          Relative humidity: 30%~75%
Interface USB
Software Type3/Ucancam V9/Artcam
Packing size 3.25*2.2*1.8=13.3CBM
Net weight 1227kg
Gross weight 1450kg
