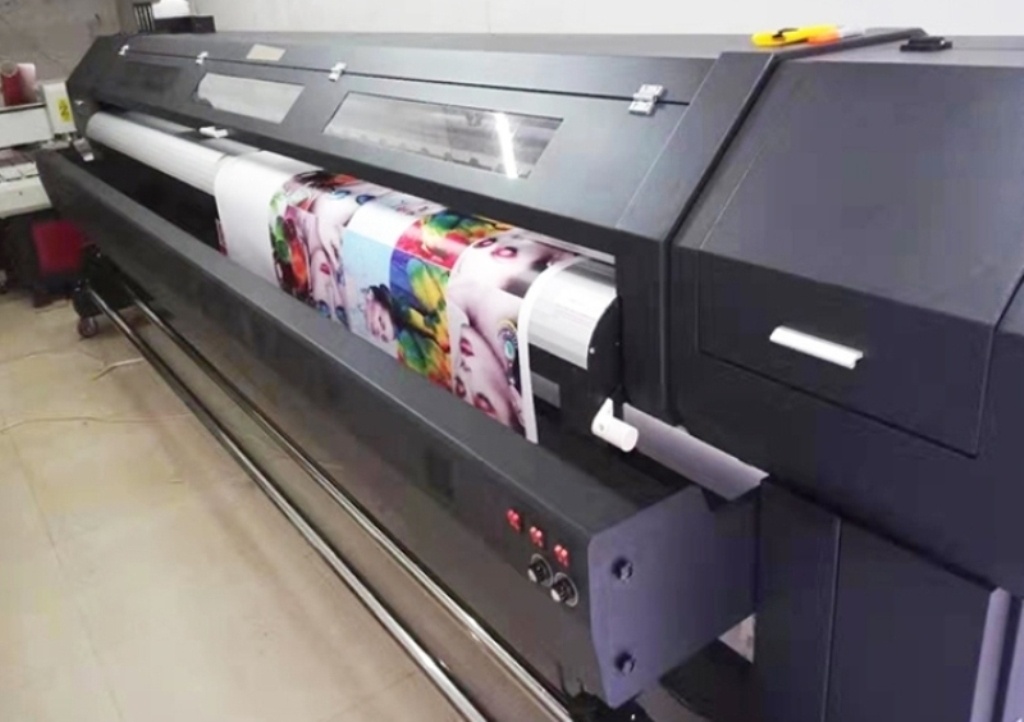

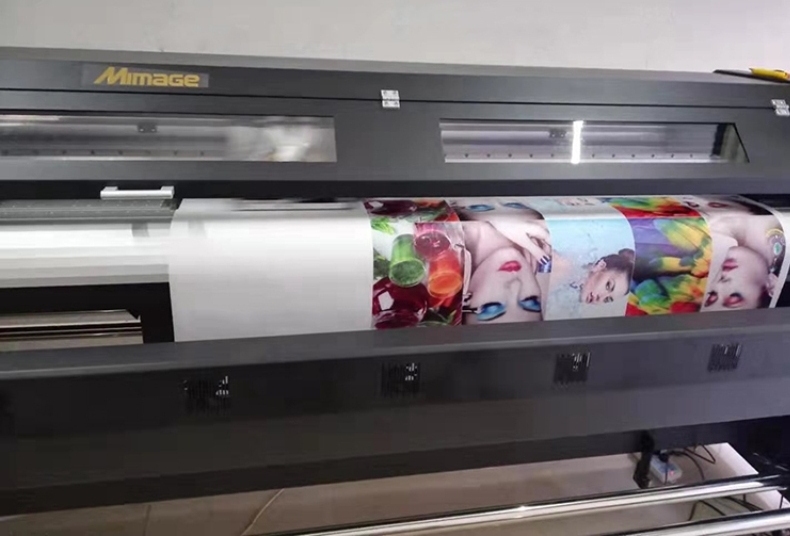

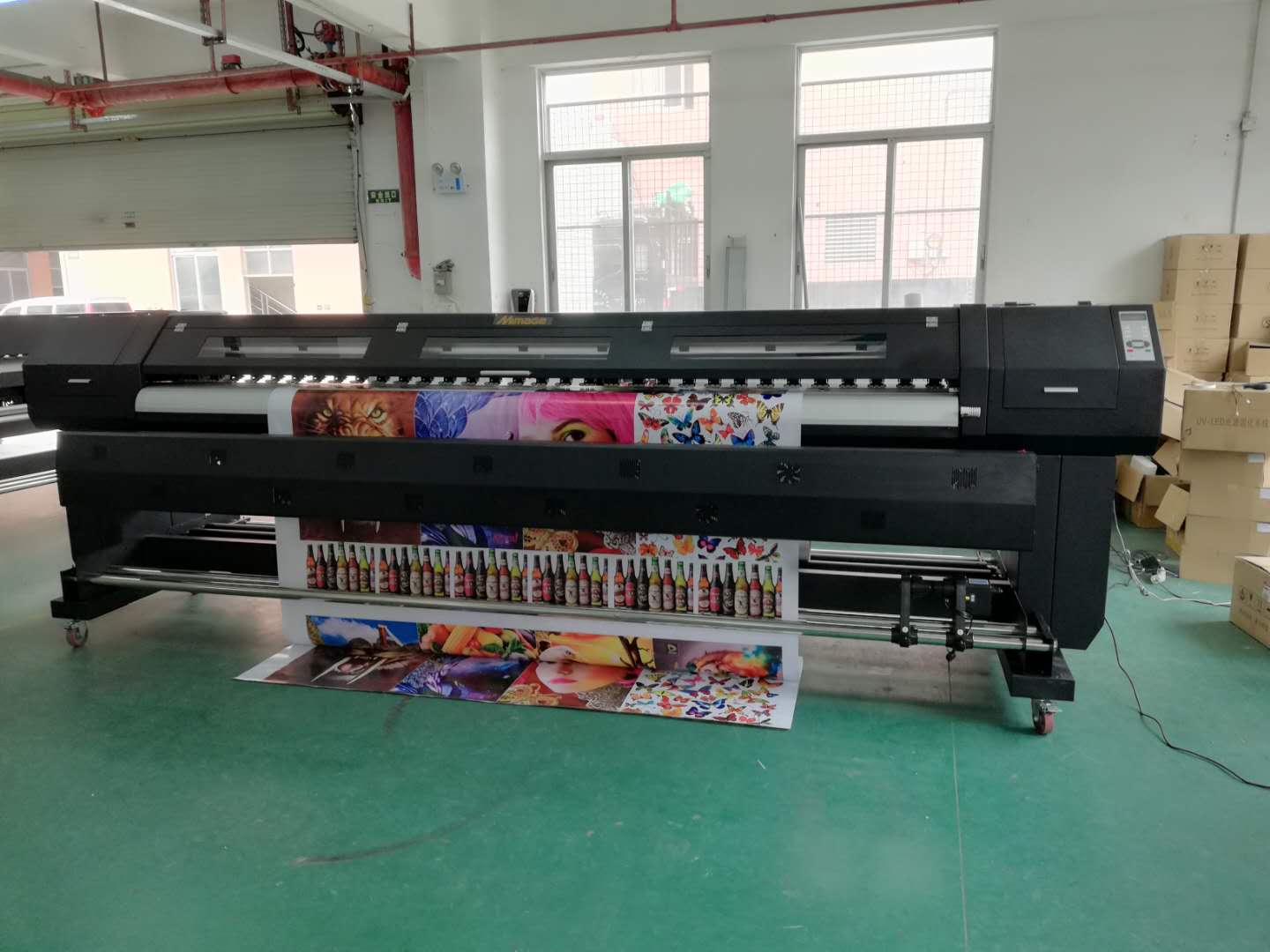

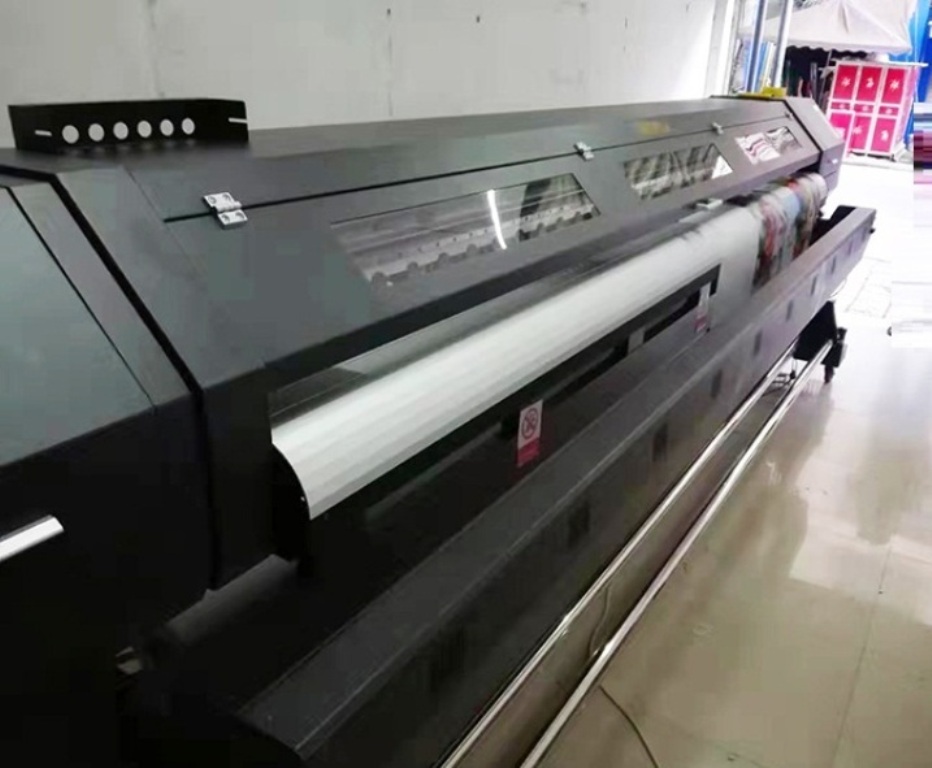

M32S MIMAGE 3.2M 10FT DX5 LARGE FORMAT FLEX BANNER PRINTER

In Stock

4,500,000.00

Mimage M16S M18S series large format printer is our Hotsale model with high quality and high resolution.



Available head:  DX5



Main Features:

  • Printer platform is true 3 phase, 99% of the market models don’t have middle phase heating, which is crucial for colors and resolution as middle heating has high requirements for the metal.
  • Front infrared heating system, and temperature adjustable
  • Higher speed platform originates from classic Locor Easyjet model
  • Strike and seal type cap station for single head, and lift up type cap station for double heads, very easy for maintenance.
  • Material detect system, once material run out, printer will stop printing automatically
  • LED light for better effect checking when printing
  • Secondary ink stank for stable ink supply for fast printing.
  • Heavy duty and durable printer body.
  • Auto and double power motor feeding and Take-up roll to roll system.
  • Free Rip software Maintop 5.3
Quantity
Compare

Technical Parameters



Model     M32S

Print Head Epson xp600 Epson DX5/2

Printing/Feeding Width 3250mm
    Ink Type Eco solvent ink
    Water based ink

Ink   Color C/M/Y/K
    Ink Tank Volume 1000ml tank for each color

    Supply Type negative pressure continuous ink supply

    Water-based Media PP self-adhesive vinyl, backlit film, photo paper,   movable PP
    self-adhesive vinyl, photo cloth etc.
Media

  Oily-based Media PVC flex banner, car sticker, reflective film, canvas, photo paper,

    PP paper, PVC cold lamination film etc.


Print   Sketch Mode 35m ㎡/h 44 ㎡/h

  Production Mode 26 ㎡/h 38 ㎡/h
Speed
  Accuracy Mode 19 ㎡/h 26 ㎡/h


Drying System fans(optional)

Head Cleaning Automatic cleaning

Heating  System Fore / after heating

Platform Suction Regulation Standard

Automatic material receiving system Standard

Print Interface Network port printing

Operating System WinXP /Win7

Printing Software Maintop

Operating Environment Best Operating temperature:15°C—30°C
Relative humidity:40%—60%


Power Supply AC—220V,50Hz/60Hz

Power(W) 800W

Package Weight /Size 900±5%/4900*1240*1580mm

Machine size 700±5%kg/4715×1105×1440mm
